Broadcast Video Switchers

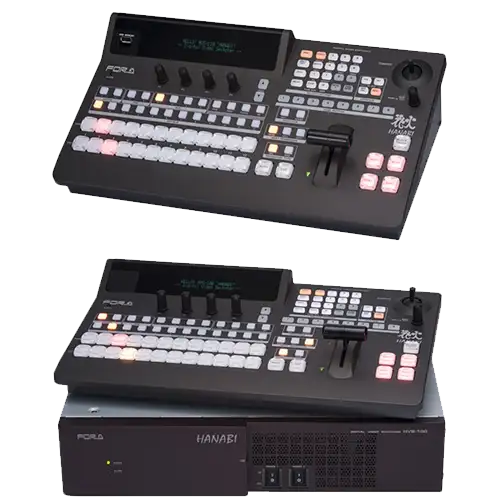

The FOR-A HVS-110 is a professional HD/SD-SDI live video switcher
- 12 × HD/SD-SDI inputs
- 8 × HD/SD-SDI outputs
- 1 × HDMI output
- Mixed HD/SD input support
- Frame synchronizers on 8 inputs
- 2 keyers with chroma key
- 2 DSKs
- 4 × 2.5D DVE engines
- Built-in re-sizing engines
- Multiple AUX outputs
- Up to 100 event memories
- Web-based control from PC/tablet
- Compact integrated control-panel design
The HVS-110 can be configured for 4K/UHD operation, supporting 3 inputs and 2 outputs with the appropriate option; it is not a native 12-input 4K switcher.
| Rental | Suggested rate |
|---|---|
| HVS-110 switcher only | ₹15,000–₹25,000/day |
| HVS-110 + operator | ₹25,000–₹40,000/day |
| HVS-110 + operator + full live-stream setup | ₹40,000–₹60,000+/day |
For your A Media Box live-streaming setup, it can be useful for a multi-camera HD production, especially when you need many SDI cameras and several program/AUX outputs.
For an India/A Media Box quotation, a practical rental rate would be approximately:

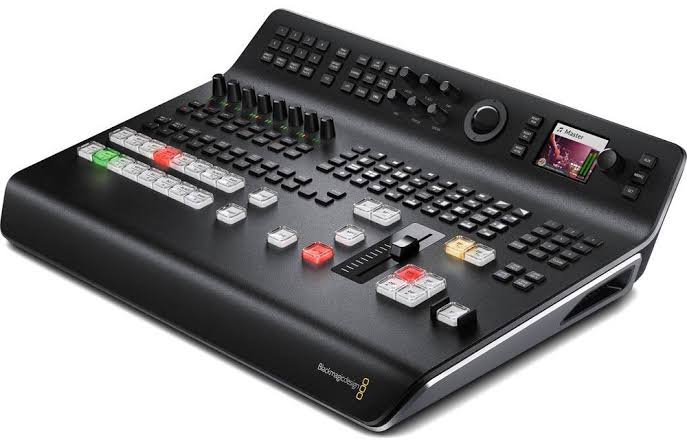

Blackmagic Design ATEM Television Studio Pro 4K Live Production Switcher
| Camera inputs | 8 × 12G-SDI |
| SDI outputs | 12 × 12G-SDI |
| HDMI output | 1 × HDMI 2.0 |
| Video | HD + 4K/UHD up to 2160p60 |
For A Media Box: this is a much more suitable choice than the older FOR-A HVS-110 if your requirement is 4K multi-camera live streaming. You can connect up to 8 SDI cameras, switch live, stream, record and send multiple SDI outputs to monitors/recorders.
Important: Blackmagic’s current official India page lists the ATEM Television Studio 4K8 as the 4K model; the older name “ATEM Television Studio Pro 4K” is a different/older product designation.
Blackmagic Design official ATEM Television Studio specification
For your A Media Box quotation
| Rental | Suggested rate |
|---|---|
| Switcher only | ₹15,000–₹25,000/day |
| With operator | ₹20,000–₹25,000/day |
| With full 4K live-streaming setup: + full live-stream setup | ₹35,000–₹50,000+/day |
| Rental | Suggested rate |
|---|---|
| ATEM HD8 ISO – switcher only | ₹12,000–₹18,000/day |
| With operator | ₹18,000–₹25,000/day |
| With full live-streaming setup | ₹30,000–₹45,000+/day |

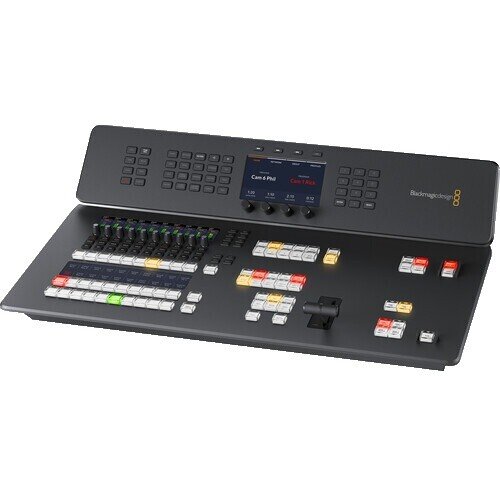

ATEM Television Studio HD8 ISO
- 8 × 3G-SDI inputs
- 12 × SDI outputs
- 1 × HDMI output
- HD up to 1080p60
- ISO recording of all 8 camera inputs as separate files
- Built-in live streaming
- Built-in master recording
- Multiview
- DVE and keyers
- Fairlight audio mixer
- USB-C for external recording and webcam output
- Supports up to 8 remote cameras with tally and camera control.
Current India price
Blackmagic’s India site currently lists the ATEM Television Studio HD8
For A Media Box live streaming: this is a very good 8-camera HD setup, especially because ISO recording lets you keep each camera separately for editing later in DaVinci Resolve.
If you want 4K, choose the ATEM Television Studio 4K8 instead; it has 8 × 12G-SDI inputs.

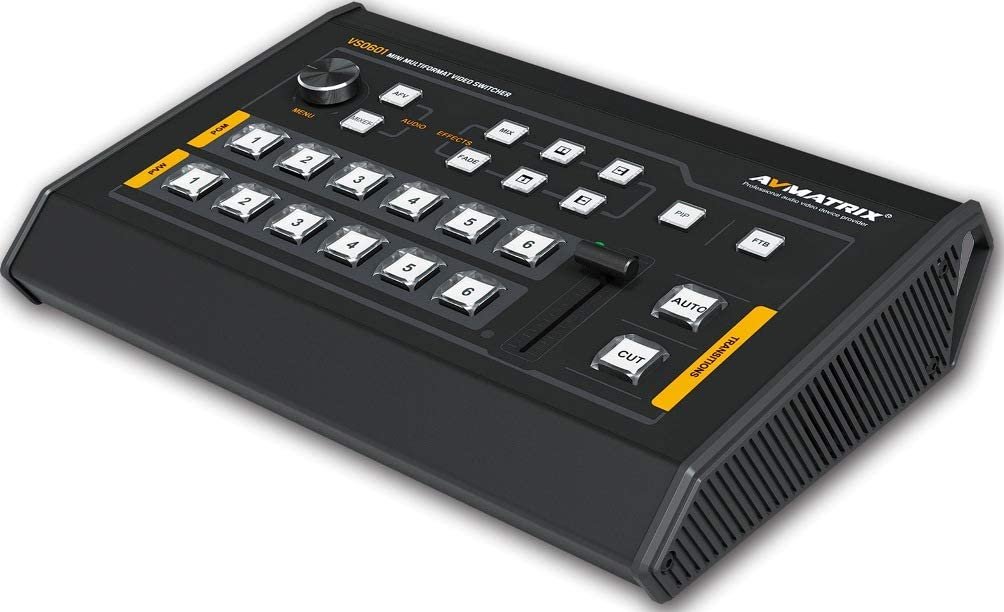

AVMATRIX Video Switchers
AVMATRIX 6-channel full specifications
The VS0605U has:
- 6 inputs: 4 × SDI + 2 × HDMI/DVI-I/VGA/USB
- 3 × SDI/HDMI PGM outputs
- 1 × SDI AUX output
- Multiview outputs
- 1080p60 recording to SD card
- Chroma key / luma key
- PiP / PoP
- Audio mixer
- PTZ camera control
- USB capture for live streaming
There is also the AVMATRIX Shark S6, a 6-channel model with 4 SDI + 2 HDMI inputs and a built-in display.
| Rental | Suggested rate |
|---|---|
| ATEM HD8 ISO – switcher only | ₹5,000–₹7,000/day |
| With operator | ₹10,000–₹15,000/day |
| With full live-streaming setup | ₹12,000–₹25,000+/day |
